Twister-C3 tank agitator suitable for water based inks and paints
Suitable for 1000 liter tanks. It has support adaptable to the size of the cage.


Technical features.

Functional characteristics.
Timer from 1 to 50 minutes at intervals from 1 to 24 hours.
Speeds from 700 to 1700 rpm.
Automatic speed limitation protection based on absorption.
Safety automatic blocking of operation in case of vibrations or non-vertical position.

Electrical characteristics.
  • Power supply 220 V.ac single phase
  • Absorption max. 4 A
  • Max consumption 0.75 kW
  • 4 pole 0.55 kW asynchronous motor

Mechanical characteristics.
  • Weight about 20 kg
  • Motor body dimensions 300 x 320 x 370 mm.
  • Stem length 900 mm.
  • Special cowless impeller (vortex + cut), 140 mm diameter.

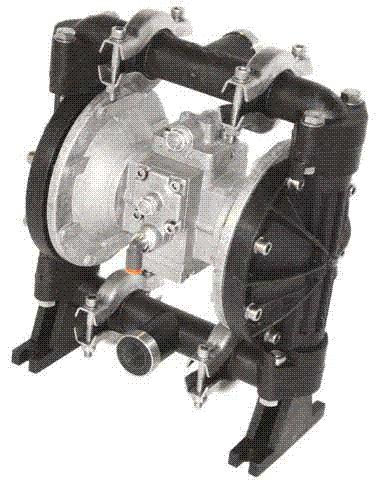

Pneumatic pump DN15
Pneumatic pump for water based inks and paints.

Technical data

  • Adjustable flow 0 รท 52 lpm
  • 1/2 "Gas delivery suction fluid connections
  • 1/4 "Gas Air Inlet
  • 1/4 "Gas Air Exhaust
  • Dry / wet suction height 4.55 m / 7.5 m
  • Max diameter solid particles 1.5 mm
  • Supply pressure max. 6.8 bar
  • Weight 5 kg

Variants:

  • Single suction and single delivery
  • Double suction and double delivery

Configurable with Teflon or stainless steel balls

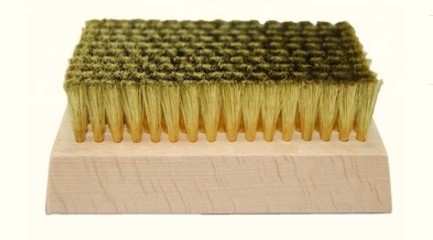

Brush for chromed anilox cylinders
Brush for cleaning chromed anilox cylinders.


Technical data

  • Dimensions: mm. 110 x 65
  • Brass bristles

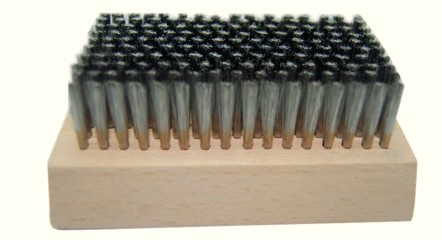

Brush for ceramic anilox rolls
Brush for cleaning ceramic anilox rolls.


Technical data

  • Dimensions: mm. 110 x 65
  • Stainless steel bristles.
